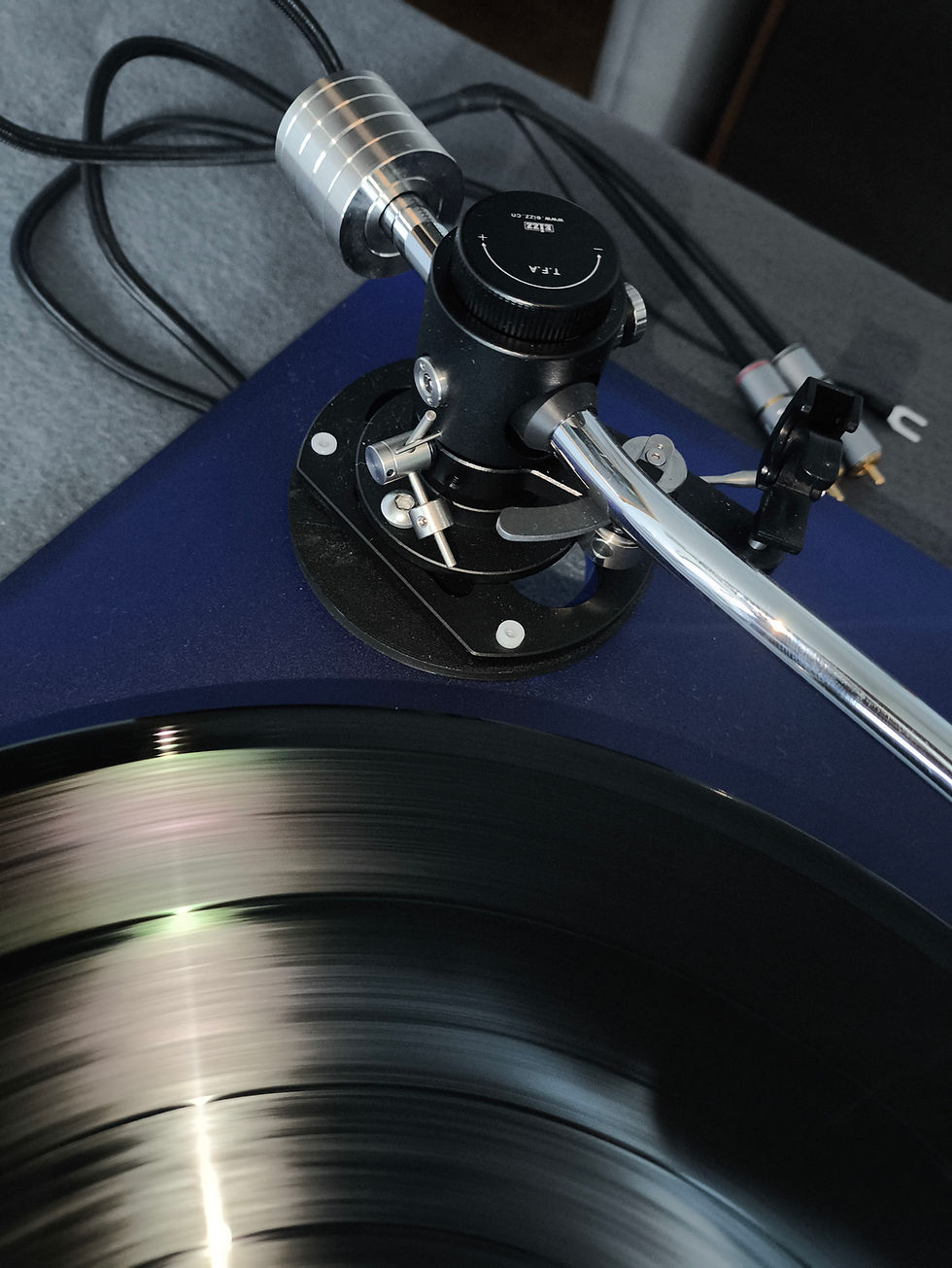

EIZZ 6009/E tonearm – Precision with spring-assisted tracking force

The EIZZ 6009/E tonearm combines classic tonearm technology with modern manufacturing quality. Of particular note is the spring-based tracking force adjustment , which allows for precise and reproducible calibration.

Unlike purely statically balanced tonearms, the tracking force here is not generated solely by the counterweight, but is also finely adjusted via an integrated spring. This ensures a constant stylus tracking force , even with slight irregularities in the record.

Highlights

• Spring-assisted tracking force adjustment (precise & stable)

• Very fine adjustment possible

• High-quality bearings for smooth running

• Optimized for MM and MC systems

• SME-compatible headshell

Technical specifications (corrected)

• Model: EIZZ 6009/E

• Tonearm type: Dynamically balanced tonearm (with spring)

• Effective length: approx. 229 mm

• Mounting distance: approx. 215 mm

• Overhang: approx. 14 mm

• Offset angle: approx. 23°

• Effective mass: approx. 6–9 g

• Support force: spring-assisted and adjustable

• Antiskating: Adjustable (usually also spring/weight-based)

• Headshell: SME-compatible, removable

• Bearings: Precision bearings

• Material: Aluminum / Stainless steel

Advantage of the spring solution

The spring-based tracking force offers you:

• more constant sampling conditions

• finer adjustment than with just a counterweight

• More stable tracking on wavy surfaces
